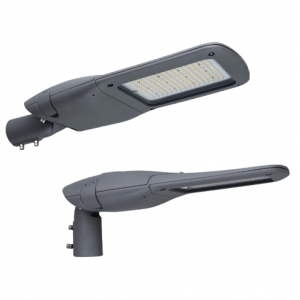

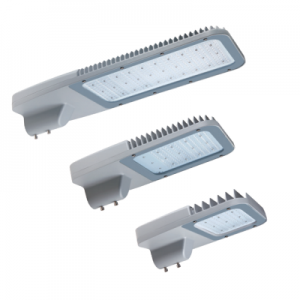

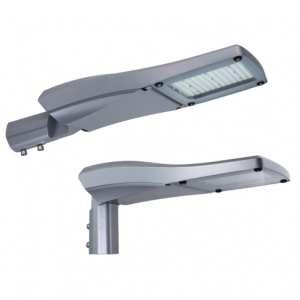

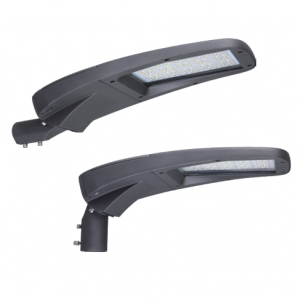

Led Street Light-(Volvo & Iphone & Bolivia & Chile & Aec)

Short Description:

GOOD QUALITY MATERIALUse high-quality die-casting aluminum–ADC12. Provide quality assurance for the les street light housing. Use 4/5mm tempered glass to make the protection level of the fixture to reach IKO9 Class.

HIGH EFFICIENCY We can use high efficiency LED 3030/5050 chips, at least its lumen can up to 130lm/w.

EASY OPERATION It is easy to open the power cavity. Only need to open the clip,no need tools.

LIGHT CONTROLThe street light can fix with light control, automatic regulation of light (lighting on at dusk, off and start charging at dawn).

IP66 WATERPROOFThe street lights with IP66 for waterproof and lightning proof, enabling it to withstand a variety of outdoor environments and weather conditions. Operating temperature: -35℃-50℃.

Split designThe power supply cavity and the LED source cavity are separated, split design with better heat dissipation.

Adjustable spigot0/90°


Product Detail

Product Tags

Public function

LED chip brand

LUMILEDS/CREE/Bridgelux

Driver Brand

MW、PHILIPS、INVENTRONICS、MOSO

Power Factor

>0.95

Voltage Range

90V-305V

Surge Protection

10KV/20KV

Working temprature

-40~60℃

IP rating

IP66

IK rating

≥IK08

Insulation Class

Class I / II

CCT

3000-6500K

Lifetime

50000 hours

Photocell base

with

Installation Spigot

60/50mm

Volvo

products
products
products
products

Product Code

BTLED-2009

Material

Diecasting aluminum

Wattage

A: 180W-300W

B: 180W-250W

C: 100W-180W

D: 60W-90W

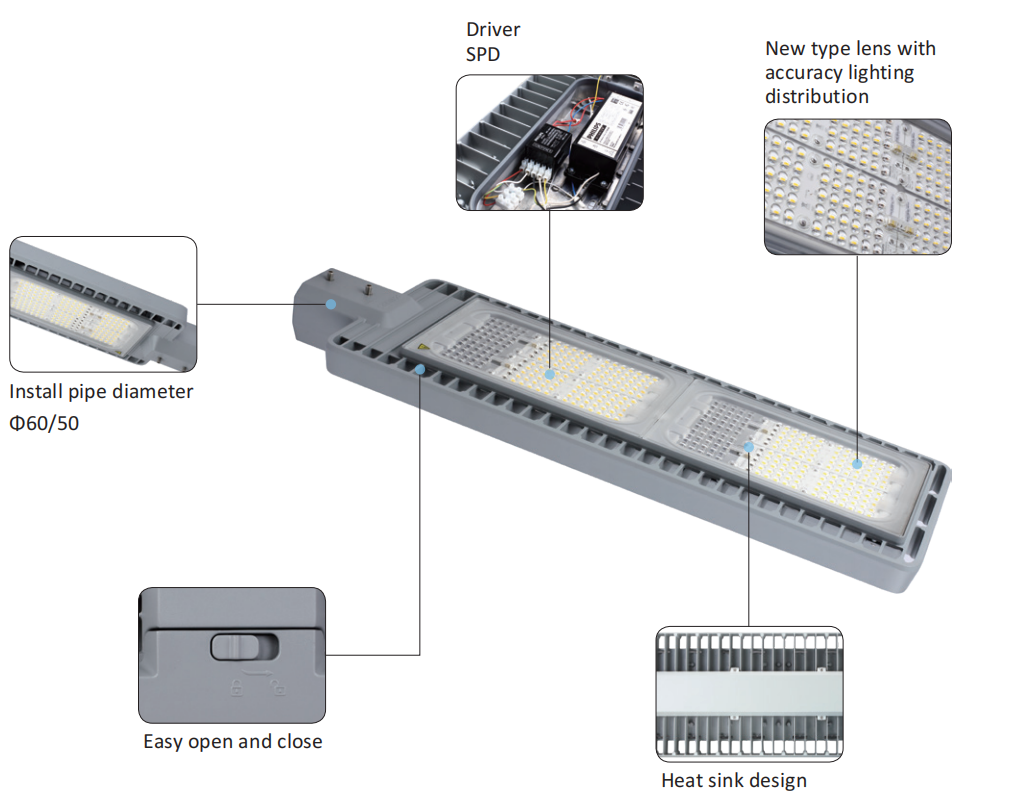

products (33)

Iphone

products

Product Code

BTLED-2008

Material

Diecasting aluminum

Wattage

A: 300W-400W

B: 240W-300W

C: 180W-240W

D: 120W-180W

E: 40W-120W

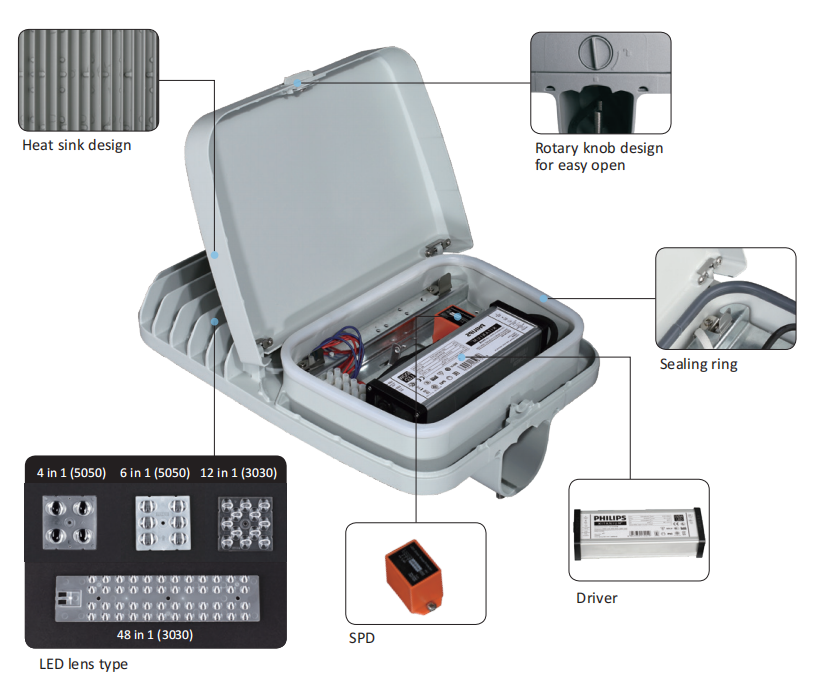

products (31)

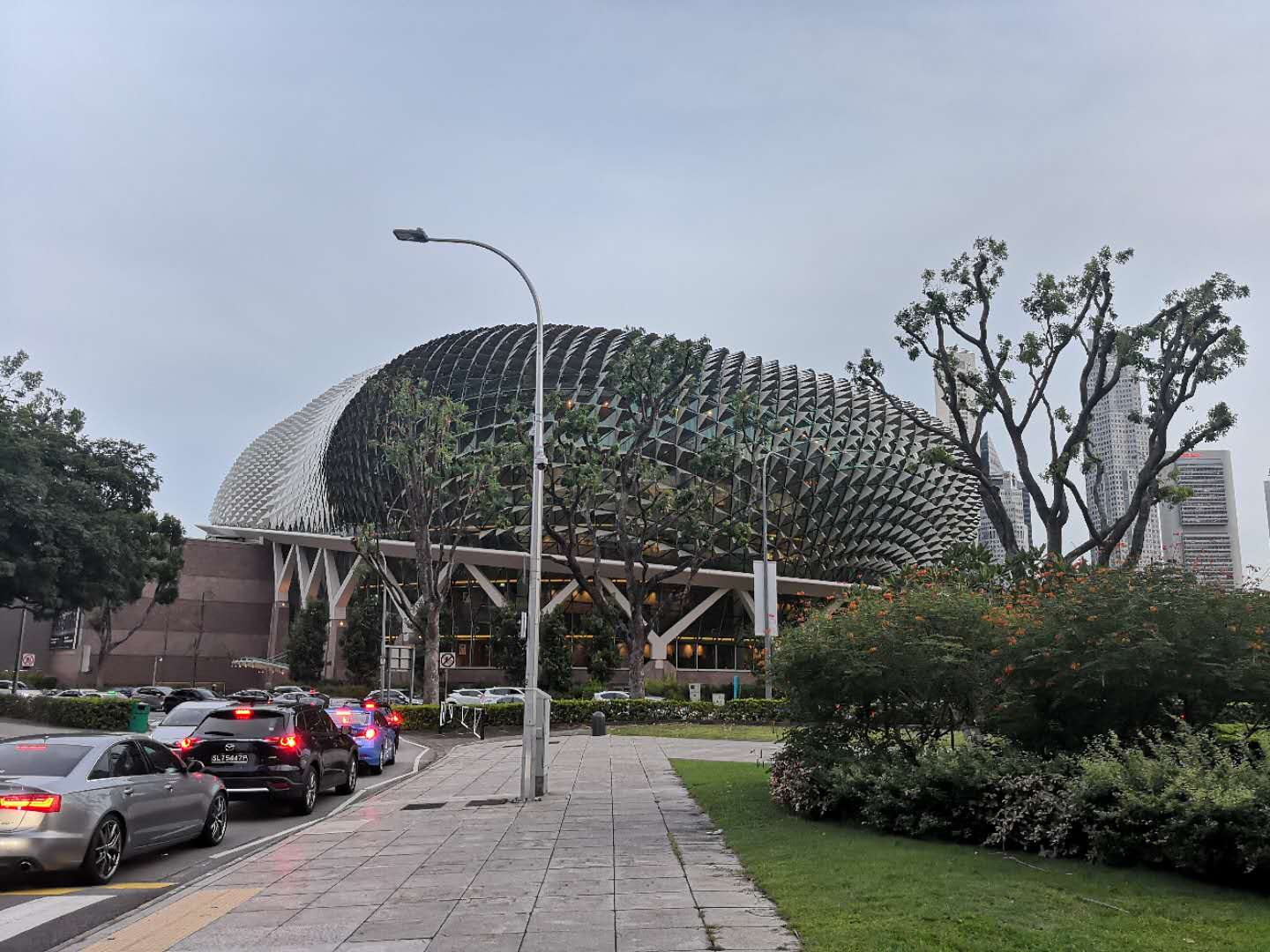

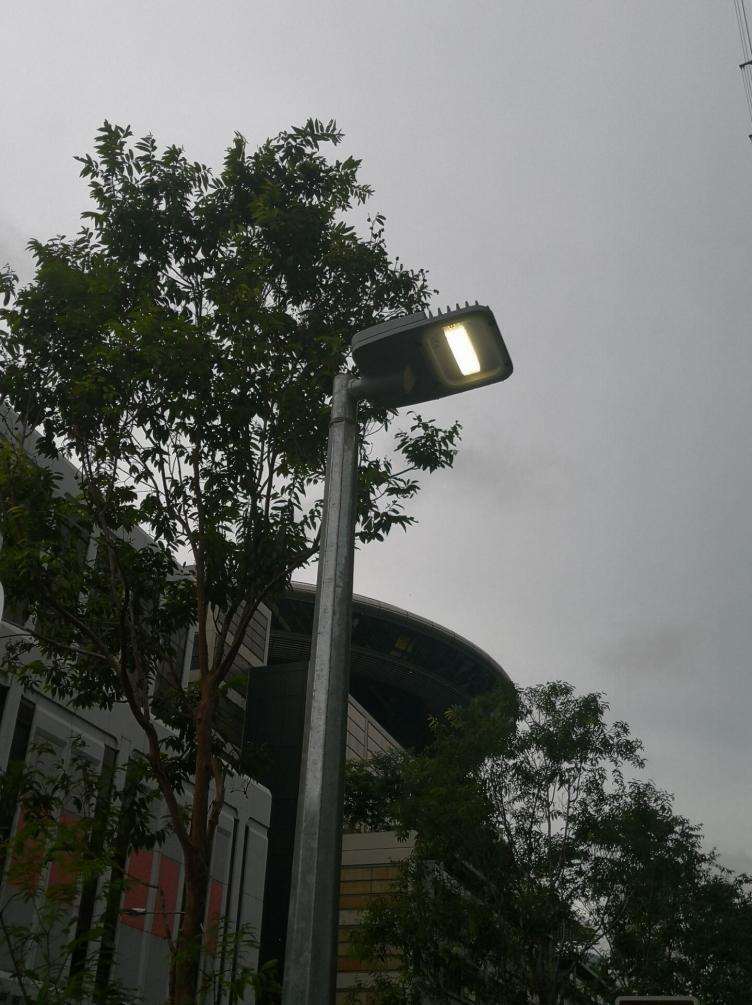

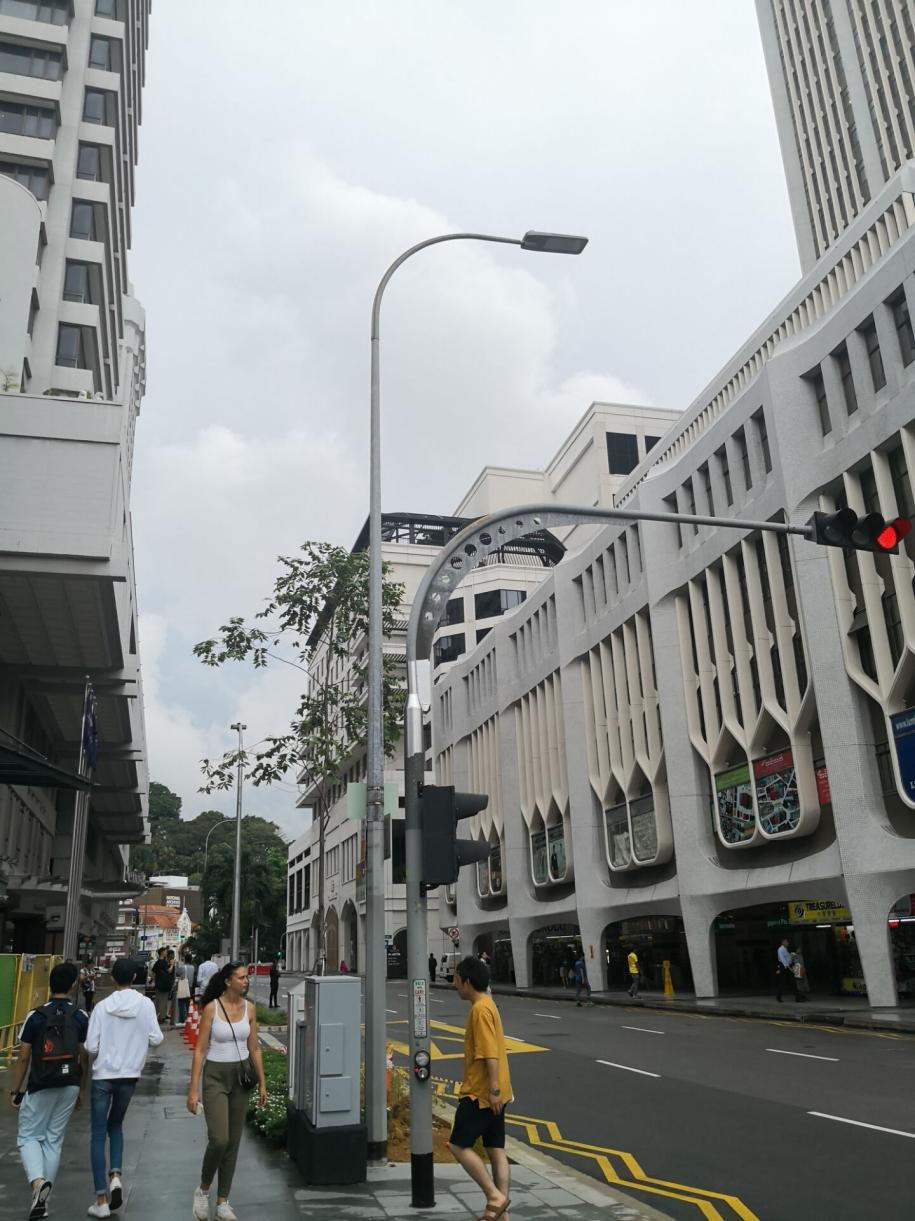

Application

products (42)
products (44)
products (43)

Bolivia

products
products

Product Code

BTLED-2007

Material

Diecasting aluminum

Wattage

A: 150W-200W

B: 75W-150W

C: 20W-75W

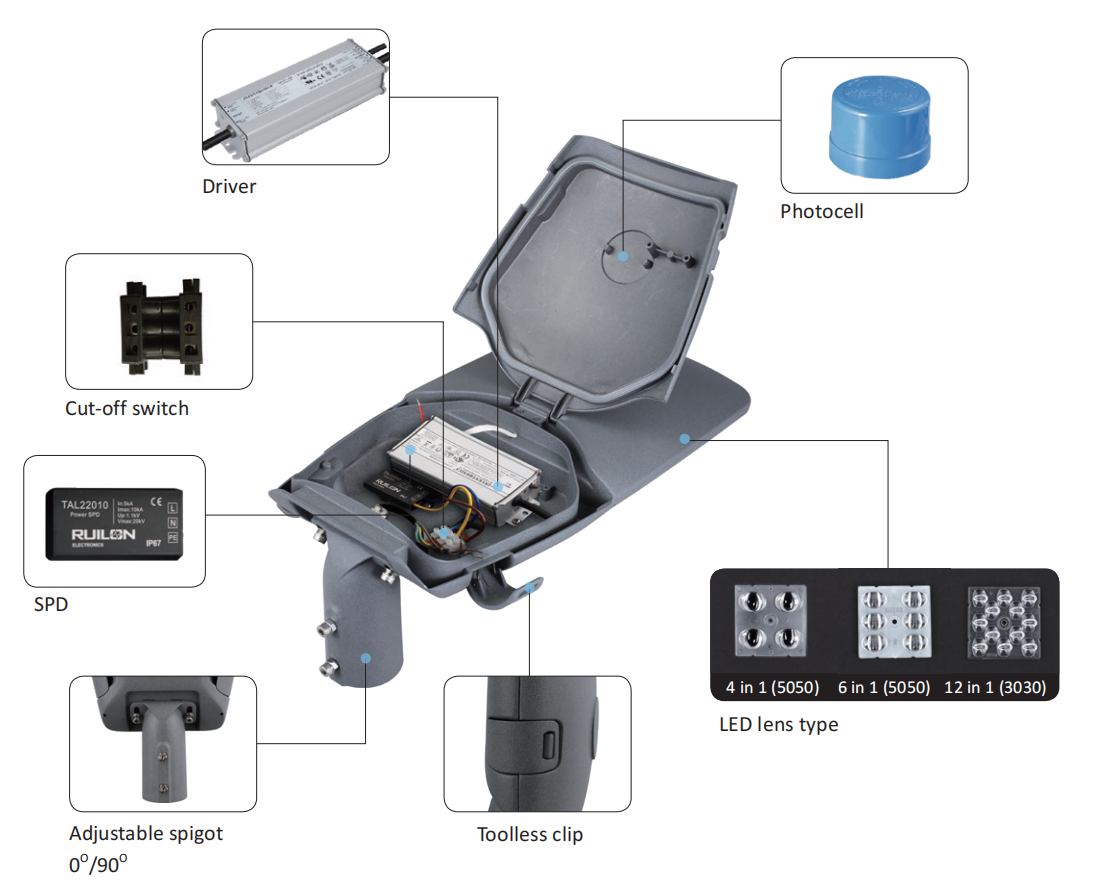

products (28)

Chile

products
products

Product Code

BTLED-2006

Material

Diecasting aluminum

Wattage

A: 90W-150W

B: 50W-80W

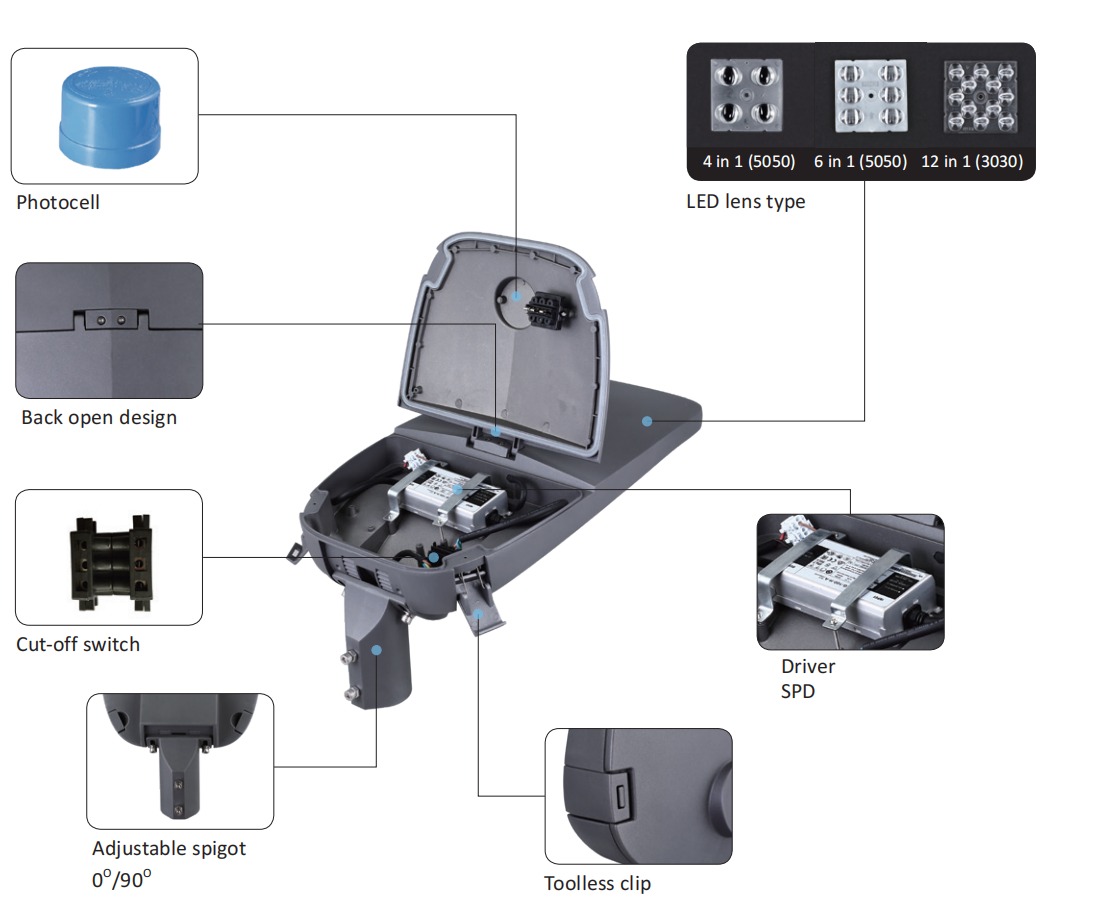

products (25)

Aec

products
products

Product Code

BTLED-2005

Material

Diecasting aluminum

Wattage

A: 150W-240W

B: 100W-150W

C: 60W-100W

D: 20W-60W

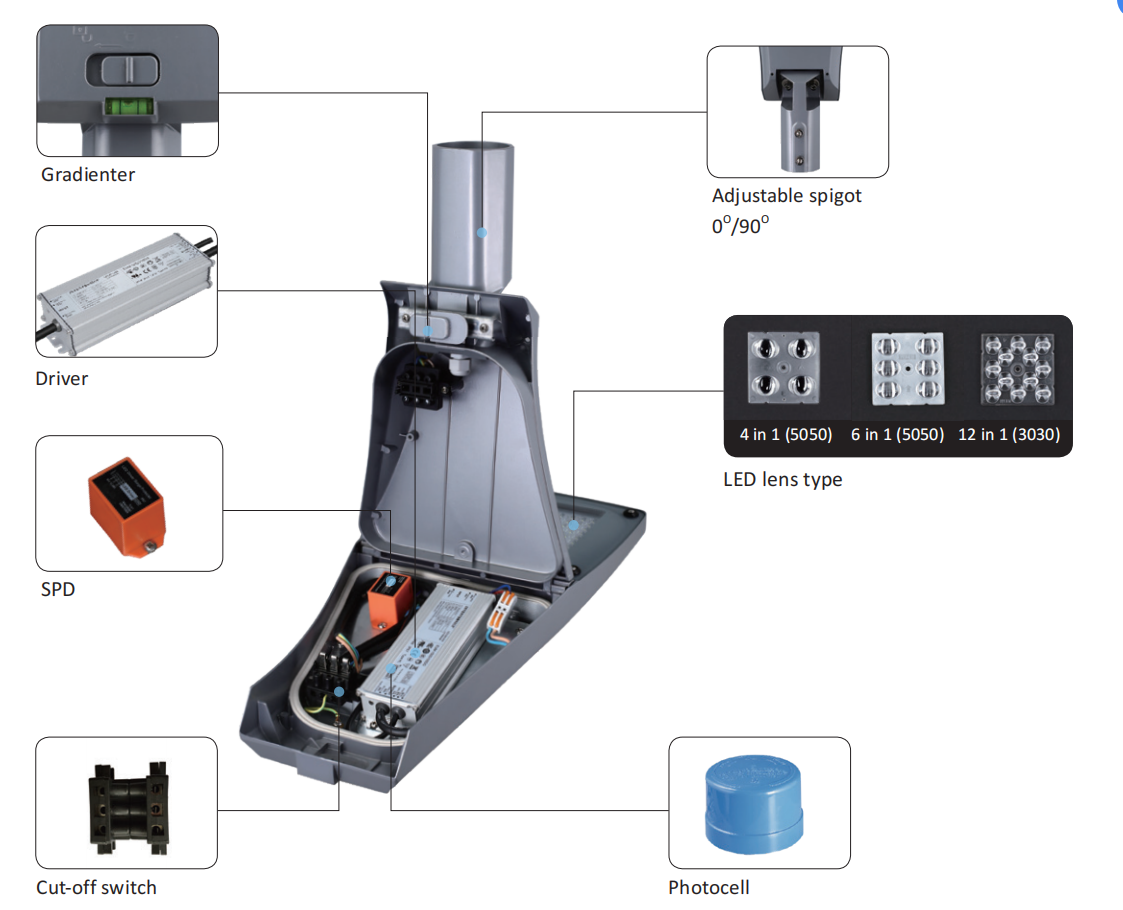

products (22)
